Optimizing Your Jeep TJ Headlight Adjustment Assembly Guide

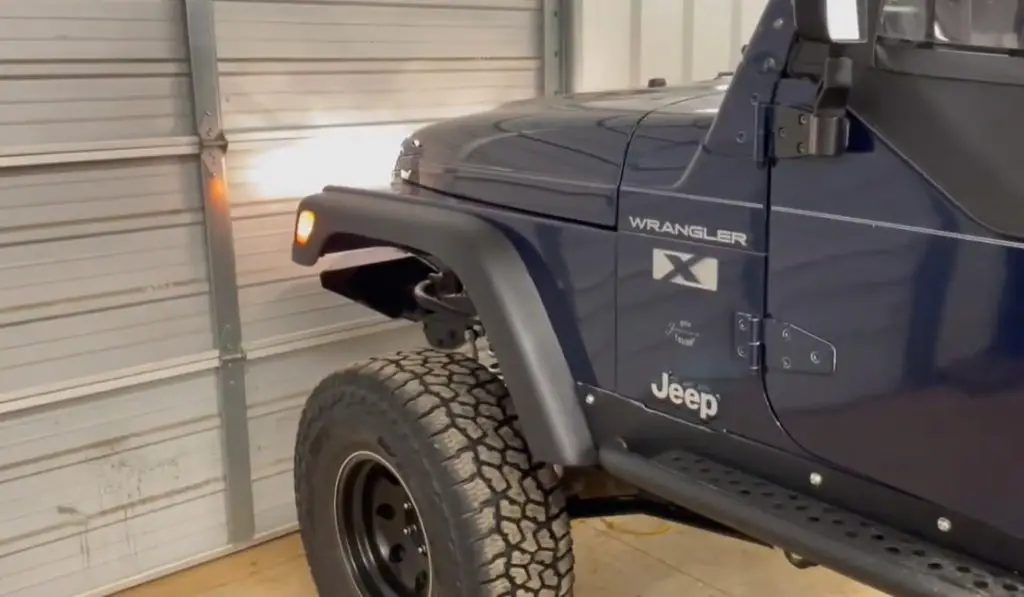

The Jeep TJ headlight adjustment assembly allows for precise alignment of the vehicle’s headlights. It ensures optimal visibility and safety on the road.

Jeep TJ models are renowned for their rugged durability and off-road capabilities, but even the sturdiest vehicles require some routine maintenance. One important aspect of this maintenance is ensuring that the headlights are properly adjusted. The adjustment assembly in a Jeep TJ is straightforward to use, making it simple for owners to maintain the correct headlight alignment.

This is essential not only for the driver’s visibility during nighttime driving but also to avoid blinding oncoming traffic. Regularly checking and adjusting your Jeep TJ’s headlights can greatly improve your night driving experience and contribute to safer driving conditions for everyone on the road.

Introduction To Jeep TJ Headlight Adjustment

Comprehension The Components Of Headlight Assembly

Your Jeep TJ’s headlight assembly is crucial for clear night vision and safety. Knowing its parts helps with maintenance and adjustment. Correct alignment ensures optimal visibility and prevents blinding other drivers. Let’s Descend into the anatomy of the headlight assembly and how to adjust it properly.

Anatomy Of The Jeep TJ Headlight Assembly

The headlight assembly of your Jeep TJ consists of several components. Each plays a vital role in providing you with the best possible light.

• Headlight Housing: This is the unit that holds all components.
• Headlight Bulb: The source of light that is inserted into the housing.
• Reflector: Reflects the light from the bulb forward.
• Lens: The clear front part that protects the reflector and bulb.
• Adjustment Screws: These screws fine-tune the direction of the headlight beam.

Tools Required For Adjustment

Adjusting Jeep TJ headlights is simple with the right tools. Gather these tools before starting:

Torx Head Screwdriver: To turn the adjustment screws.

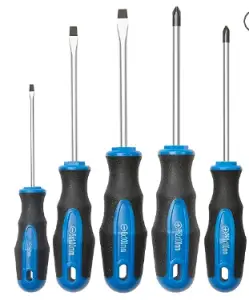

Phillips Head Screwdriver: May be needed for certain screws.

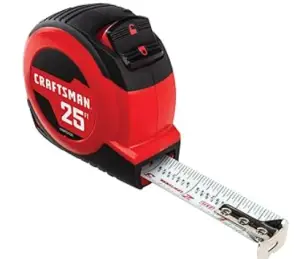

Tape Measure: To measure the headlight height on the wall.

Masking Tape: For marking correct headlight beam levels.

Level Ground: To ensure accurate adjustments, park on flat terrain.

Wall or Garage Door: To gauge headlight alignment.

Step-by-step Guide To Adjusting Your Headlights

Properly adjusted headlights are crucial for night driving and safety. If your Jeep TJ’s headlights seem off, don’t worry. This step-by-step guide will help you align them just right. We’ll go through finding the adjustment screws and how to tweak both horizontal and vertical angles.

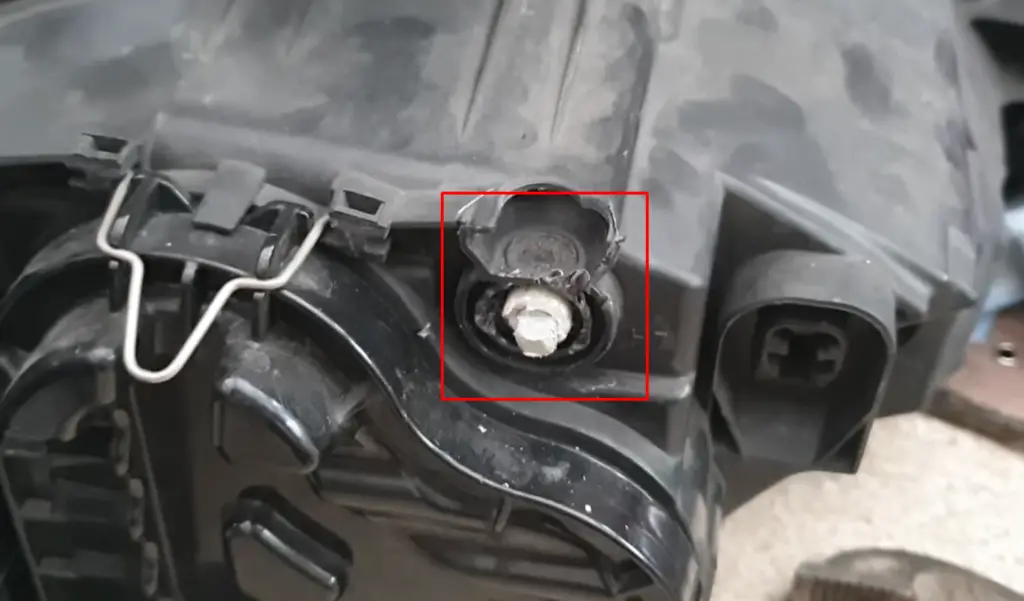

Locating The Adjustment Screws

Finding the right screws is the first step. See these simple tips:

• Open your Jeep’s hood.
• Locate the headlights near the front.
• Find two sets of screws: one on top, one on the side.
• The top screw adjusts the vertical angle. The side screw is for horizontal adjustments.

It’s that easy! Once you’ve found them, you’re ready to begin.

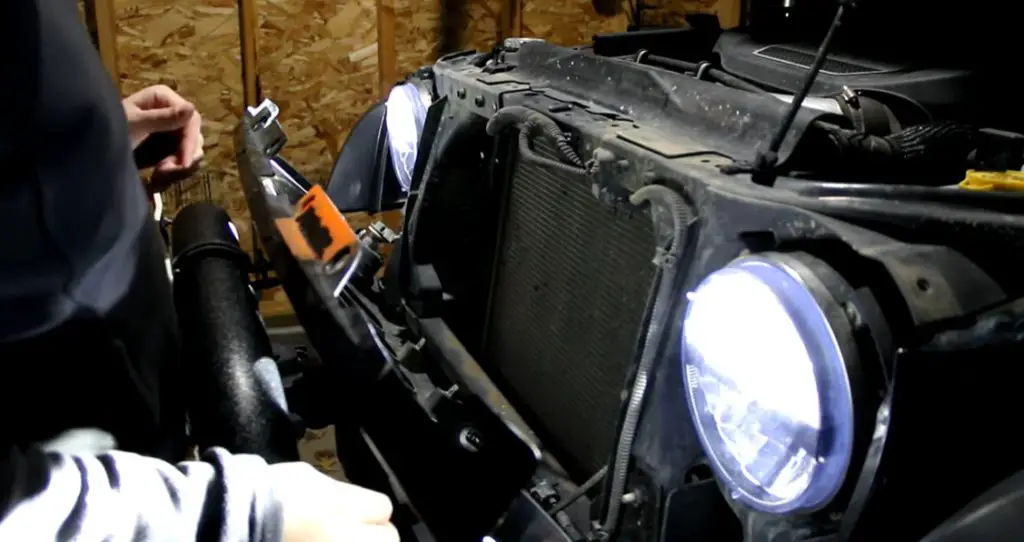

Horizontal And Vertical Adjustment Procedures

We’ll start with horizontal adjustments, then move to vertical. Follow these steps:

Action	Horizontal Adjustment	Vertical Adjustment
1. Park Jeep	Park on a level surface, 25 feet from a wall.
2. Mark Headlight Center	Use tape to mark the centers on the wall.
3. Adjust Screws	Turn the side screw until the beam hits the mark.	Use the top screw to align the vertical beam.
4. Test Drive	Take a test drive to ensure proper alignment.

Remember, turn each screw slowly. Count the turns in case you need to reset. Nighttime visibility is key for safety, and correct headlight alignment makes a huge difference. With this guide, your Jeep TJ headlights will be set for optimal use.

Common Issues And Troubleshooting

Jeep TJ headlight adjustment is essential for safe driving. Perfectly aligned headlights ensure good road visibility. Misalignment can lead to poor visibility and driving hazards.

Symptoms Of Misaligned Headlights

• Blinding other drivers, and showing your headlights are too high.
• Poor visibility, indicating headlights may be too low or off to the side.
• Uneven light on the road, suggests one headlight is aimed differently from the other.

Troubleshooting Headlight Adjustment Issues

1. Check your Jeep’s owner’s manual; it has specific guidelines for headlight adjustment.
2. Ensure the vehicle is on level ground and the headlights are clean.
3. Locate the adjustment screws. These are usually on the headlight assembly.

Turn the screws to adjust the vertical and horizontal aim.

Use a wall or garage door to mark the correct headlight height.

Adjust until the beams are properly aligned.

Problem	Possible Cause	Fix
Headlights too high or too low	Adjustment screws	Turn screws
Headlights pointing sideways	Adjustment screws or damaged mount	Correct aim or repair mount

Improvement And Upgrades For Your Headlights

Welcome to the Jeep TJ enthusiast’s guide on enhancing those trusty headlights. Bright and clear visibility is crucial for any road adventure. Let’s Descend into some top-tier upgrades for your Jeep TJ headlights that will brighten your path and turn heads.

Aftermarket Options And Upgrades

Jeep TJ owners often seek to upgrade their headlights. Many choose aftermarket options that offer improved performance over stock units. Let’s Investigate these upgrades:

• Higher wattage bulbs: They shine brighter than typical factory bulbs.
• Projector headlights: Project a focused beam that illuminates the road ahead without blinding others.
• Halo lights: Add a stylish ring of light for a modern appearance.

These upgrades are not only about style but also safety. Bright headlights help you spot road hazards sooner. This table shows a comparison:

Headlight Type	Brightness	Visibility Range	Style Factor
Stock	Standard	Good	Classic
Aftermarket Halogen	High	Better	Modern
LED	Very High	Best	Futuristic

Led Conversion Kits And Their Adjustment

Many Jeep owners choose LED conversion kits for their energy efficiency and longevity. Installing these kits provides a stark contrast to the old halogen bulbs. Here’s what you get with LED:

• Crisper, whiter light
• Less power consumption
• Longer lifespan

It’s important to adjust these headlights correctly. Proper alignment ensures the best visibility without dazzling oncoming traffic. Follow these steps for adjustment:

1. Find a flat surface and a vertical wall.
2. Position your Jeep Tj around 25 feet from the wall.
3. Mark the wall at the headlight height to use as a reference.
4. Adjust the beams so they’re slightly below the mark and centered.

Remember to check local laws on automobile lighting to ensure compliance. Your Jeep’s lighting should be as ready for adventure as you are!

Legal And Safety Considerations

Legal and safety considerations are paramount when dealing with Jeep TJ headlight adjustment and assembly. Not only do the headlights need to be aligned for optimal vision, but they must also conform to legal standards to ensure safety on the road. With the right information and approach, maintaining compliant and well-adjusted headlights becomes straightforward.

Comprehension Headlight Regulations

Headlight regulations vary by location. They dictate the correct alignment and brightness. Regulations ensure drivers see the road clearly without blinding others. Owners are responsible for knowing and adhering to these rules, which are designed for everyone’s safety.

• Regulations cover aspects such as the minimum and maximum height of beams.
• They specify acceptable headlight brightness levels.
• Enforcement is typically handled through vehicle inspections.
• Non-compliance may lead to fines and penalties.

The Role Of Headlights In Vehicle Safety

Headlights play a critical role in nighttime safety. Their correct adjustment affects your own and others’ safety. Misaligned headlights can cause accidents and collisions. Therefore, properly maintained headlights are crucial for a safe driving experience.

Headlight Function	Importance for Safety
Visibility	Ensures you can see the road ahead clearly.
Communication	Signals your presence to other road users.
Alignment	Avoids dazzling oncoming traffic.

Frequently Asked Questions For Jeep Tj Headlight Adjustment Assembly

Where Are The Headlight Adjustment Screws?

Headlight adjustment screws are typically located on the back or side of the headlight assembly. They control vertical and horizontal aim. Refer to your vehicle’s manual for precise locations.

Can Jeep Wrangler Headlights Be Adjusted?

Yes, Jeep Wrangler headlights can be adjusted for both horizontal and vertical aim using built-in adjustment screws.

How Do You Adjust The Headlights On A Lifted Jeep?

To adjust the headlights on a lifted Jeep, park it 25 feet from a wall. Use a Phillips screwdriver or Torx tool to turn the adjustment screws found on the headlight assembly. Turn clockwise or counterclockwise until the beam aligns properly with the desired height on the wall.

How High Should Headlights Be At 25 Feet?

Headlights should aim straight forward and be level within 2 inches lower at 25 feet for proper alignment.

Conclusion

Wrapping up, proper Jeep TJ headlight adjustment ensures optimal visibility and safety on roads. By following the guidelines drivers can easily fine-tune their headlights for a better driving experience. Regular checks are key – ensure your Jeep is ready for any adventure, day or night.

Stay illuminated, stay safe.
