The Jeep Wrangler headlight adjustment ring is essential for aligning your headlights properly. This tool ensures your lights illuminate the road ahead effectively.
Jeep Wrangler owners know their adventurous rides require constant upkeep, and headlight maintenance is a crucial part of that. Ensuring your headlights are correctly aligned is not only critical for your visibility during night drives but also for the safety of oncoming traffic.
An improperly aligned headlight can lead to reduced road vision and potentially blinding other drivers. The adjustment ring allows for precise control over the vertical and horizontal positioning of the headlight beam, improving your vehicle’s lighting efficiency. Regular checks and adjustments can prevent potential hazards and ensure your Wrangler is ready for any off-road challenge. With proper headlight alignment, you maintain compliance with road safety regulations and Improve your driving experience. Now let’s explain about Jeep Wrangler Headlight Ring Adjustment.
The Jeep Wrangler Headlight Adjustment Ring
The Jeep Wrangler stands out with its rugged features and powerful presence. One vital component that ensures safety during nighttime adventures is its lighting system.
Specifically, the headlight adjustment ring plays a crucial role in beam alignment. This article sheds light on this small yet essential part of helping drivers maintain optimal visibility.
Overview Of The Jeep Wrangler Lighting System
Jeep Wranglers are equipped with a robust lighting system designed for diverse terrains and weather conditions. It includes high-quality headlights that, when properly adjusted, provide a clear view of the road ahead. Optimal light distribution helps in avoiding blind spots and ensures safe driving.
Importance Of Proper Headlight Adjustment
- Improves road visibility during low-light conditions.
- Reduces the risk of blinding oncoming traffic.
- Improves overall driving safety.
- Maintains the vehicle’s compliance with traffic laws.
The Role Of The Adjustment Ring In Headlight Alignment
The adjustment ring is a key component in the Jeep’s headlight assembly. It allows for fine-tuning of the headlight beam’s direction and angle.
Proper use of the adjustment ring ensures the lights illuminate the road correctly, without causing glare to other drivers.
Comprehension Headlight Adjustment
Properly adjusted headlights are essential for safe driving. They ensure you can see ahead without blinding others. Jeep Wrangler owners often add Headlight Adjustment Rings for precise control. Let’s Plunge into the details.
Principles Of Headlight Aiming
Correct headlight aiming follows these principles:
- Headlights should point straight ahead, not up or down.
- They must be level to prevent glare.
- Adjustments should respond to vehicle load changes.
To aim right, use the Jeep Wrangler’s built-in adjustment ring. This helps align the beam correctly.
Legal Requirements For Headlight Adjustment
All vehicles must comply with certain legal standards for light alignment. These laws vary by location but aim to:
| Requirement | Purpose |
|---|---|
| Maintain a specific height | Ensure visibility without glare |
| Conform to road safety regulations | Minimize traffic hazards |
Check local laws to ensure your Jeep’s headlights meet legal standards.
Safety Implications Of Misaligned Headlights
Misaligned headlights can lead to:
- Reduced visibility: Straining to see dark roads is dangerous.
- Glaring other drivers: Bright, misdirected beams can blind others.
- Accidents: Low visibility increases collision risk.
Regular checks and adjustments keep your driving safe. Use the headlight adjustment ring to keep your Wrangler’s lights on point.

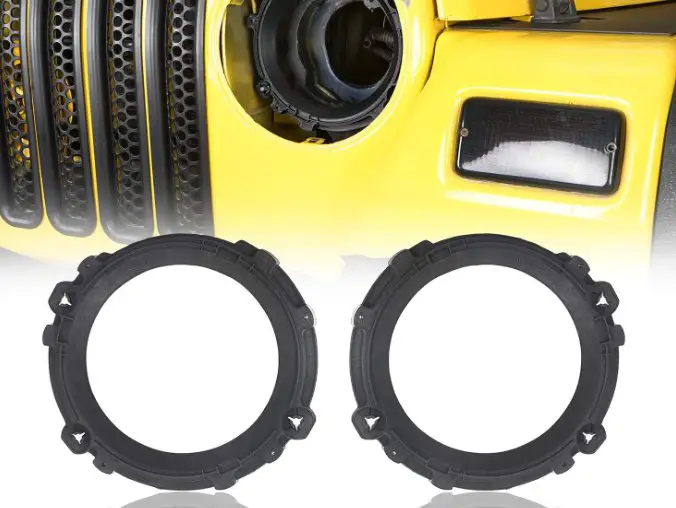

The Anatomy Of The Wrangler’s Adjustment Ring
Jeep Wrangler loves to blaze trails during the day and night. Yet, at night, proper lighting is key. The adjustment ring of a Jeep Wrangler’s headlight plays a crucial role. It ensures your path is well-lit. Knowing how it works is important for every Wrangler owner. Let’s Plunge into its makeup and function.
Materials And Design Of The Adjustment Ring
The adjustment ring in a Wrangler is no ordinary piece. It’s a blend of sturdiness and precision.
- Made from high-grade plastics or metal alloys.
- Designed for easy tuning of headlight aim.
- Features notches or teeth for minute adjustments.

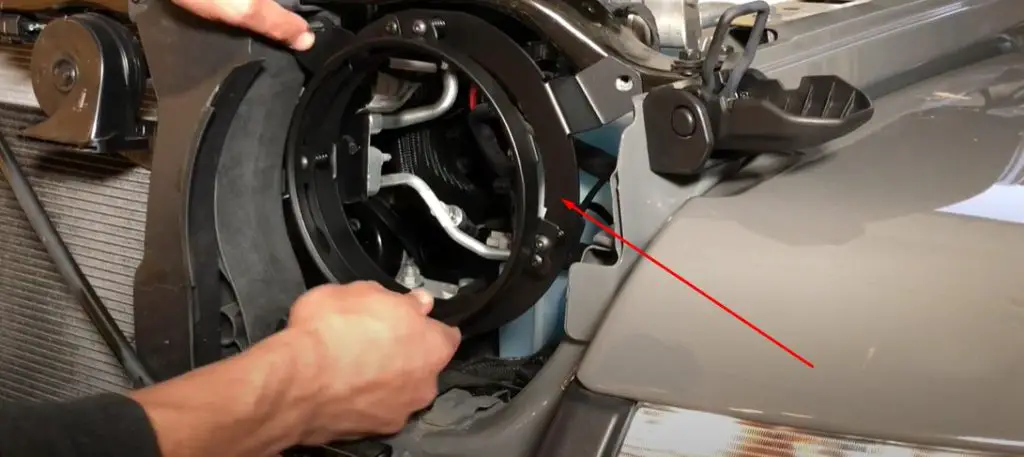

How The Adjustment Ring Interfaces With The Headlight Assembly
This ring is a master of connection. It sits snug between your Jeep’s headlights and the mount.
- Locks into the back of the headlight unit.
- Adjustment screws pass through, allowing precise angle control.
- Aligns with headlight beams for optimal road coverage.
Durability And Common Issues With The Adjustment Ring
Durability is a must for this small yet critical part. But even the toughest warriors face challenges.
| Material | Durability | Common Issues |
|---|---|---|
| Plastic | Resistant to corrosion | Can crack under impact |
| Metal | Strong against physical stress | Prone to rust over time |
Step-by-step Guide To Adjusting Your Headlights
Welcome to our Step-by-Step Guide to Adjusting Your Headlights. Properly aligned headlights are crucial for safe driving at night. If you drive a Jeep Wrangler, adjusting your headlight’s adjustment ring is a simple task you can do at home. Follow this straightforward guide and ensure your Wrangler’s headlights are perfectly aligned for your next adventure.
Tools Needed For Headlight Adjustment
Before we start, make sure you have these tools:
- Torx head screwdriver or socket wrench
- Measuring tape or ruler
- Masking tape
- A flat surface near a plain wall
- Enough space to work in front of the Jeep

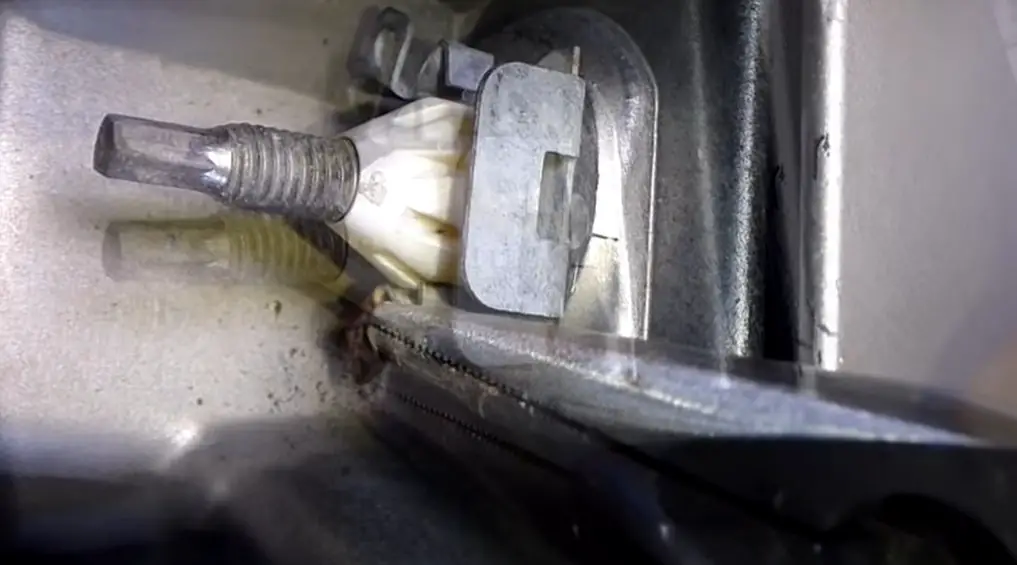

Locating And Accessing The Adjustment Ring
Your Jeep has an adjustment ring located behind the headlight. Here’s how to find it:
- Park your Jeep facing a wall on level ground.
- Make sure the surface is flat and the vehicle is approximately 25 feet from the wall.
- You’ll find the adjustment screws behind the headlight assembly.
- They can be accessed without removing any major components.
Instructions For Turning And Aligning Headlights
Time to align those headlights! Here’s what you need to do:
- Turn on your headlights and mark the center of the beams on the wall using masking tape.
- Back up your Jeep 25 feet from the wall, ensuring it remains straight.
- Adjust the beams down or up by turning the adjustment ring; clockwise or counterclockwise.
- The top of the light beams should align with the tape marks on the wall.
- Verify that both headlights are at the same height.
- Test drive to ensure the alignment is correct.
Ensure to double-check your work and enjoy clearer, safer night driving in your Jeep.
Troubleshooting Headlight Adjustment Issues
Properly aligned headlights ensure safe driving by illuminating the road ahead and making your vehicle visible to other drivers. The Jeep Wrangler headlight adjustment ring is a crucial component in maintaining the correct beam angle. In this guide, we’ll look into troubleshooting common issues associated with adjusting your Wrangler’s headlights.
Common Problems When Adjusting Jeep Wrangler Headlights
Headlights that won’t adjust or uneven beam patterns often signal problems. Let’s Investigate:
- Stripped adjustment screws: These can prevent proper alignment.
- Rusted components: They could hinder movement.
- Damaged adjustment ring: A worn or broken ring will affect control.
- Seized mechanisms: This may be a result of dirt or lack of use.
Diagnosing Issues With The Headlight Adjustment Ring
To diagnose, follow these steps:
- Check the headlight assembly for visible damage.
- Ensure the adjustment screws are intact and not stripped.
- Attempt to turn the adjustment ring. It should move smoothly.
- Look for corrosion or debris that might obstruct mechanisms.
Addressing these areas often resolves adjustment challenges.
When To Seek Professional Help
Some headlight problems need expert attention. Seek help if you observe:
- Persistent misalignment despite correct adjustments
- Snapped adjustment mechanisms that you cannot repair
- Electrical issues impacting headlight functionality
A certified mechanic can provide the necessary expertise for complex issues.
Maintenance And Care For Headlight Components
Jeep Wrangler headlight components need regular attention for peak performance. The headlight adjustment ring is a critical part. It ensures optimal aim and light focus. Proper maintenance ensures safety. It can Improve the appearance of your vehicle too. Regular care can prevent costly repairs. Learn to maintain and upgrade your headlight parts with easy steps.
Regular Maintenance Tips For Headlight Clarity And Function
- Check the headlights monthly for clarity.
- Clean the lens with a quality cleaner.
- Inspect for cracks and seal them promptly.
- Adjust brightness levels as needed.
Maintaining clean and functional Jeep Wrangler headlights is easy. It improves road safety. Clean lenses allow better light projection for night driving.
How To Prevent Wear And Tear On The Adjustment Ring
- Avoid over-tightening the adjustment screws.
- Use the correct tools for adjustments.
- Protect the adjustment ring with a silicone spray.
To prevent damage, handle the headlight adjustment ring gently. Regular checks and the right tools keep it functioning well. A silicone spray can protect the ring from harsh conditions.

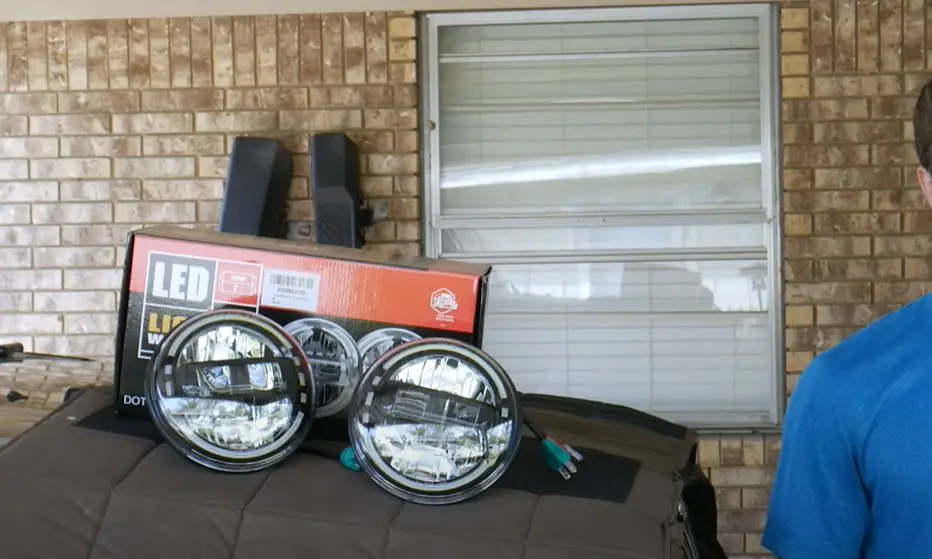

Upgrading The Headlight Adjustment Ring And Related Parts
An upgrade can improve headlight functionality. Consider these parts:
| Part | Benefit |
|---|---|
| LED bulbs | Brighter light |
| Adjustment ring kits | More precise control |
Upgrade kits are available. They can make a big difference. Improved materials offer durability. They provide better resistance to wear and tear.
Frequently Asked Questions For Jeep Wrangler Headlight Adjustment Ring
Can Jeep Wrangler Headlights Be Adjusted/ Jeep Wrangler Headlight Ring Adjustment?
Yes, Jeep Wrangler headlights can be adjusted. This process typically involves aligning the beams using the adjustment screws located on the headlight assembly.
How Do You Adjust Left And Right Headlights On A Jeep?
Park your Jeep facing a flat wall and mark the headlight centers with tape. Open the hood and locate the adjustment screws. Turn the top screw to adjust the vertical alignment and the side screw for horizontal alignment. Check alignment against the wall and adjust as needed.
Adjusting the headlights on your Jeep Wrangler involves precise steps to ensure optimal visibility without blinding oncoming drivers. To begin, gather the necessary tools needed for headlight adjustment. Start by parking on a level surface, facing a wall about 25 feet away. Using masking tape, mark a horizontal line corresponding to the height of the headlights.
For left-to-right adjustment, locate the adjustment screws behind the headlight assembly. The euro adjustor screw enables lateral movement. Adjust each headlight independently, aligning them with the marked lines on the wall. Typically, the right headlight should be slightly higher than the left to avoid glare towards oncoming traffic.
To establish the correct height for headlights, refer to the vehicle’s manual or local regulations. After adjustments, measure the headlight height to ensure compliance.
Upon completing adjustments, test the beam alignment by observing their trajectory. Secure the headlights by tightening the screws. This process guarantees proper illumination while ensuring road safety, keeping your Jeep Wrangler headlights aligned for a clear and safe driving experience.
Why Are My Jeep Headlights So Dim?
Dim Jeep headlights can result from several issues, such as old bulbs, dirty or oxidized lenses, poor grounding, or a weak alternator. Regular maintenance and checks can prevent this problem.
How Do You Adjust JK Headlights Down?
To adjust JK headlights down, locate the adjustment screw atop each headlight. Use a Phillips screwdriver to turn the screw clockwise, which will lower the beam. Make small adjustments and check the beam’s aim against a wall to ensure proper alignment.
Conclusion
Properly adjusting your Jeep Wrangler’s headlights can Improve your driving experience and safety significantly. With the right adjustment ring, alignment is straightforward and ensures optimal visibility. Remember, regular checks are key to maintaining clear vision on the road. Now, it’s time to light up your path and enjoy the journey ahead.
